MP 4X Series – Flash Mount pressure sensors and transmitters

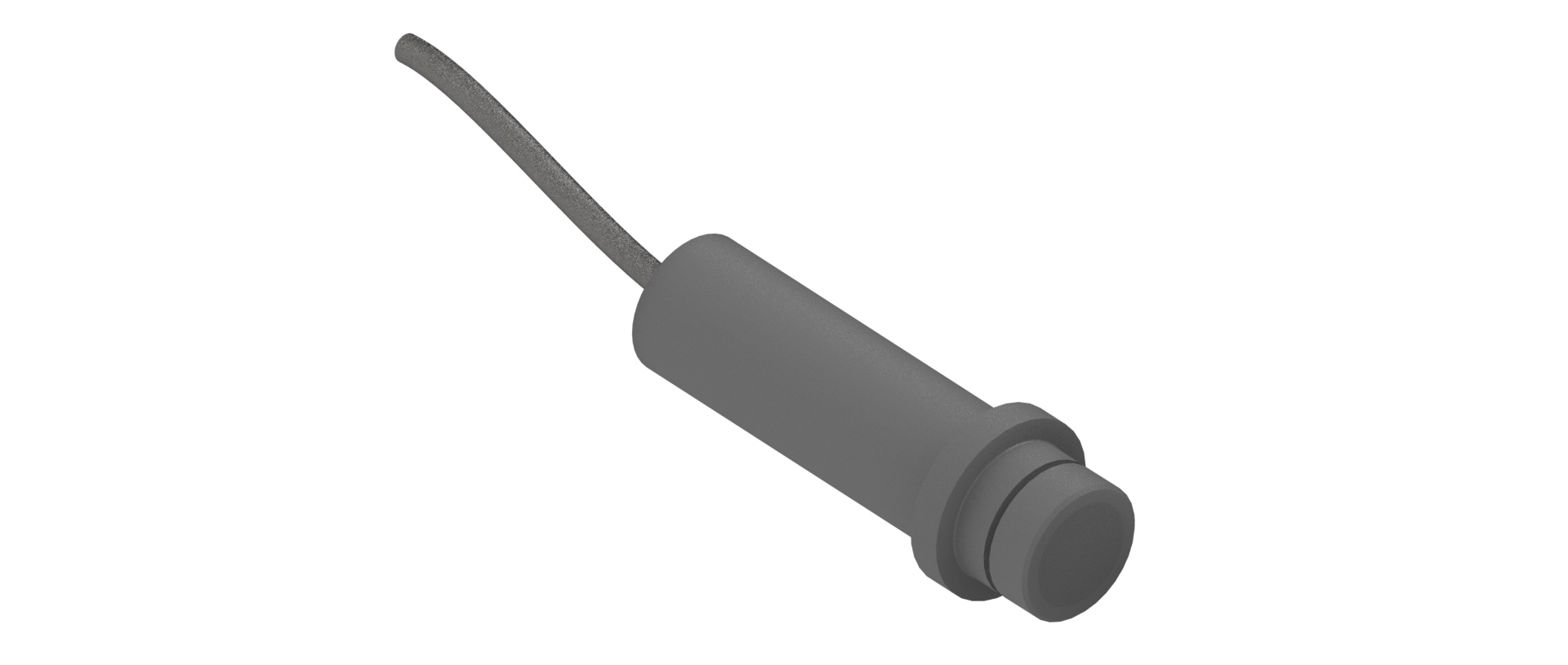

MP 4X series are flush mountable, miniature, low cost, general use pressure transducers. These transducers are made of corrosive resistant titanium (Ti6Al4V). They utilize high reliability semi-conductor strain gauges bonded directly to the inside surface of the machined diaphragm. The bond and housing make the sensors accurate and resistant to very harsh environments, including aggressive fluids, multi-phase fluids and high vibrations.
Teflon coating of the diaphragm is optional. Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
In addition to our standard line of Titanium transducers, we have experience in providing sensors made of 17-4 PH steel (1.4548), 316 SS steel (1.4404), Inconel, Tantalum, Aluminum, Invar Plastics and others.
Pressure range, precision level and long-term stability can be selected depending on requirements.
Titanium hermetic headers permit offering the MP 40 series with absolute or sealed reference options. The hermetic header is located just behind the strain gage diaphragm section of the sensor. Sealing the sensitive gauges to an inert environment increases stability and reliability.
High vibration options are also available.
For line pressure fittings (standard and Swagelok) and calibration adaptors, see the Adaptors Brochure.
Applications
- Test & measurement equipment
- Experiments
- Production equipment & controls
- Energy controls
- Laboratory instruments & equipment
- Liquid level
- Calibration equipment
MP 40

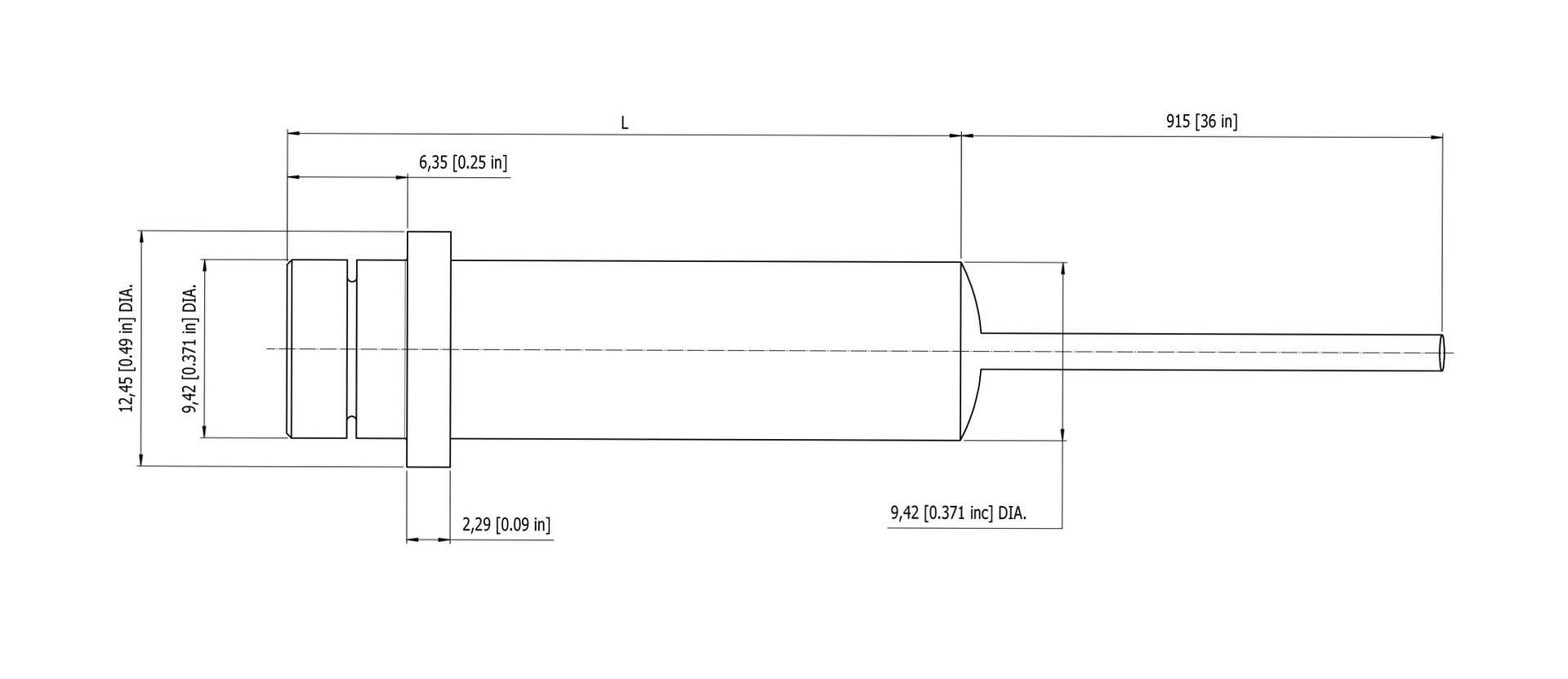

MP 40
Input 0-5V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 2-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): ±2 mV
Full Scale Sensitivity: 20±2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 5 Volts DC or AC
Maximum Voltage (short periods): 30 V
view-download
MP 42

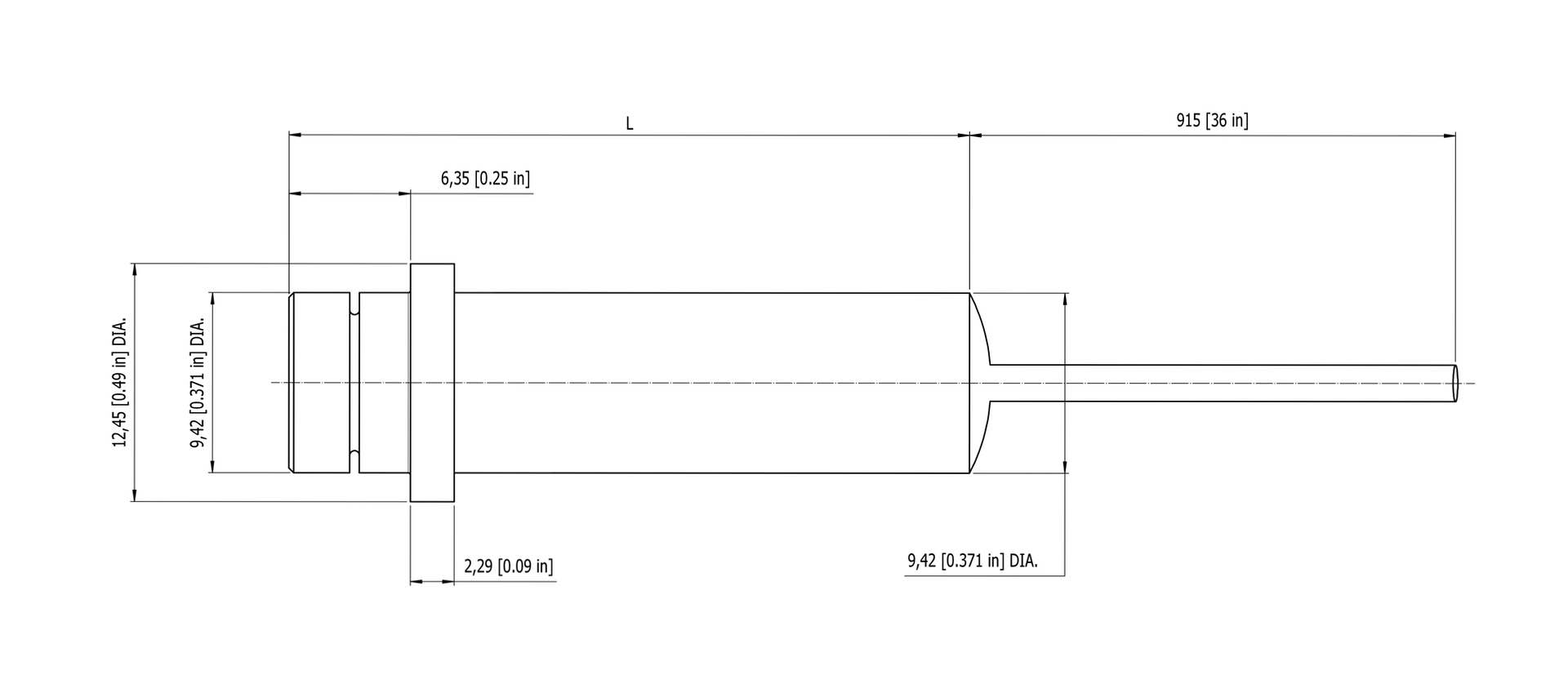

MP 42
Input 0-4 mA, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 2-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): ±2 mV
Full Scale Sensitivity: 27±1.4 mV/mA
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Current Excited: 0–4 mA DC or AC
Maximum Voltage (short periods): 30 V
view-download
MP 402
MP 402
Input 12-32V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 2-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): 4±0.2 mV
Full Scale Sensitivity: 16±0.2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 12-32V, DC or AC
Maximum Voltage (short periods): 32 V
view-download
MP 49 standard, low cost transducer
The sensing head is machined out of 17-4 PH (1.4548 / 1.4542) corrosive resistant, high strength steel. High reliability bulk type semiconductor strain gauges are bonded directly to the inside surface of the sensor diaphragm. The brass body contains the sensor bridge completion elements, to which a 6 conductor cable is attached.
Key features: the MP 49 sensor is:
- Low cost and robust, perfect for OEM applications
- Quick recovery from large thermal transients
- High pressure over range with no balance shift
- Compatible with all liquids and gases suitable with 17-4 PH steel, which is widely used for medical applications
For line pressure fittings (standard and Swagelok) and calibration adaptors, see the Adaptors Brochure.
Applications
- OEM Instruments
- Production equipment & controls
- Energy controls
- Laboratory instruments & equipment
- Hydraulic controls
MP 49
Input 0-5V, DC or AC; Relative
MECHANICAL
Standard Pressure Ranges: 20-200 bar
PERFORMANCE
Balance (Zero): ±3 mV
Full Scale Sensitivity: 20±2 mV/V
Static Error Band: ± 0. 5% F.S. (BFSL), max.
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: 17-4PH Steel
ELECTRICAL
Input, constant Voltage Excited: 0-5V DC or AC
Maximum Voltage (short periods): 30 V
