thread mount
pressure sensors and transmitters
MP 5X series

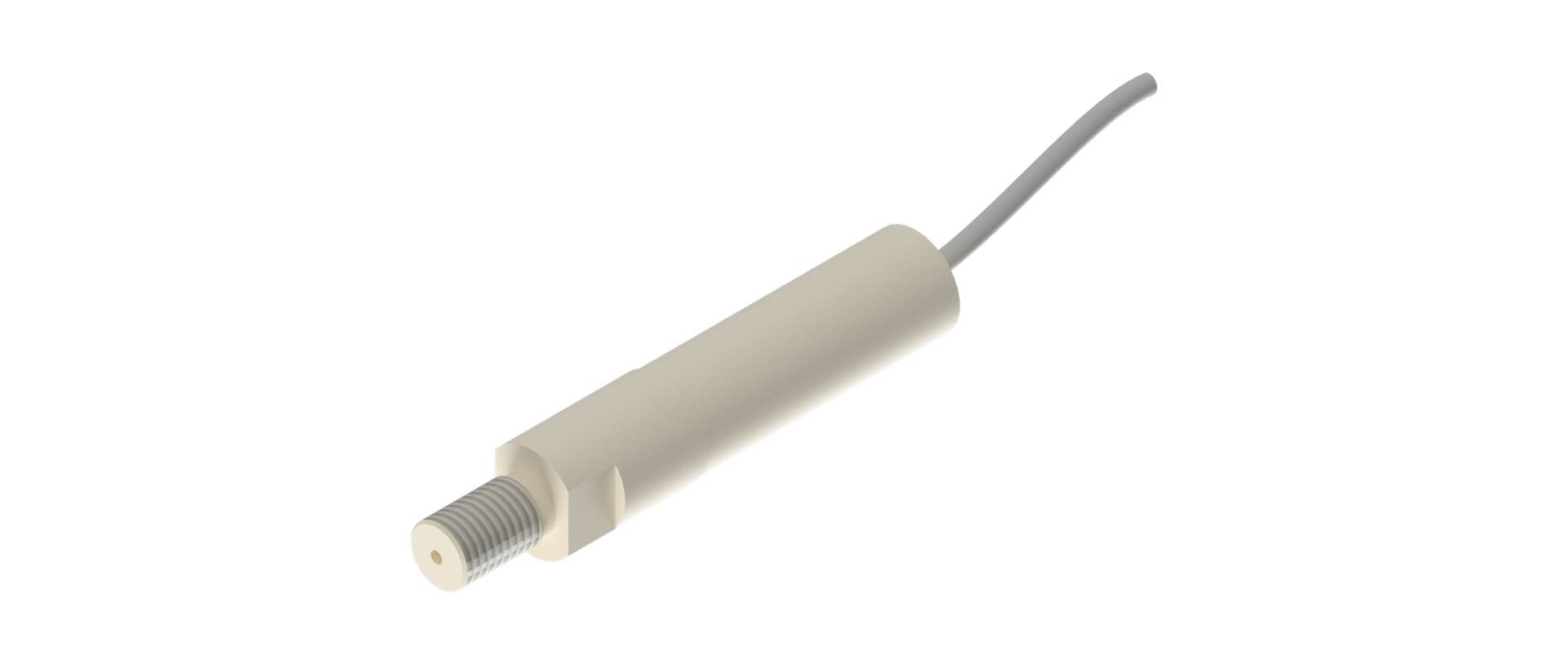

MP 5X Series – Thread Mount pressure sensors and transmitters
MP 5X series are threaded pressures transducers, insensitive to mounting torque, to suit a wide range of applications, analogous to the MP 4X series.
These transducers are made of corrosive resistant Titanium (6AL4V). They utilize high reliability bulk type semiconductor strain gauges bonded directly to the inside surface of the machined diaphragm. The bond and housing make the sensors accurate and resistant to very harsh environments, including aggressive fluids and high vibrations. The thread mount and torque insensitivity makes them very stable for embedded applications, large pressure variations, and harsh vibrations.
In addition to our standard line of Titanium transducers, we have experience in providing sensors made of 17-4 PH steel (1.4548), 316 SS steel (1.4404), Inconel, Tantalum, Aluminum, Invar Plastics and others.
Pressure range, precision level and long-term stability can be selected depending on requirements.

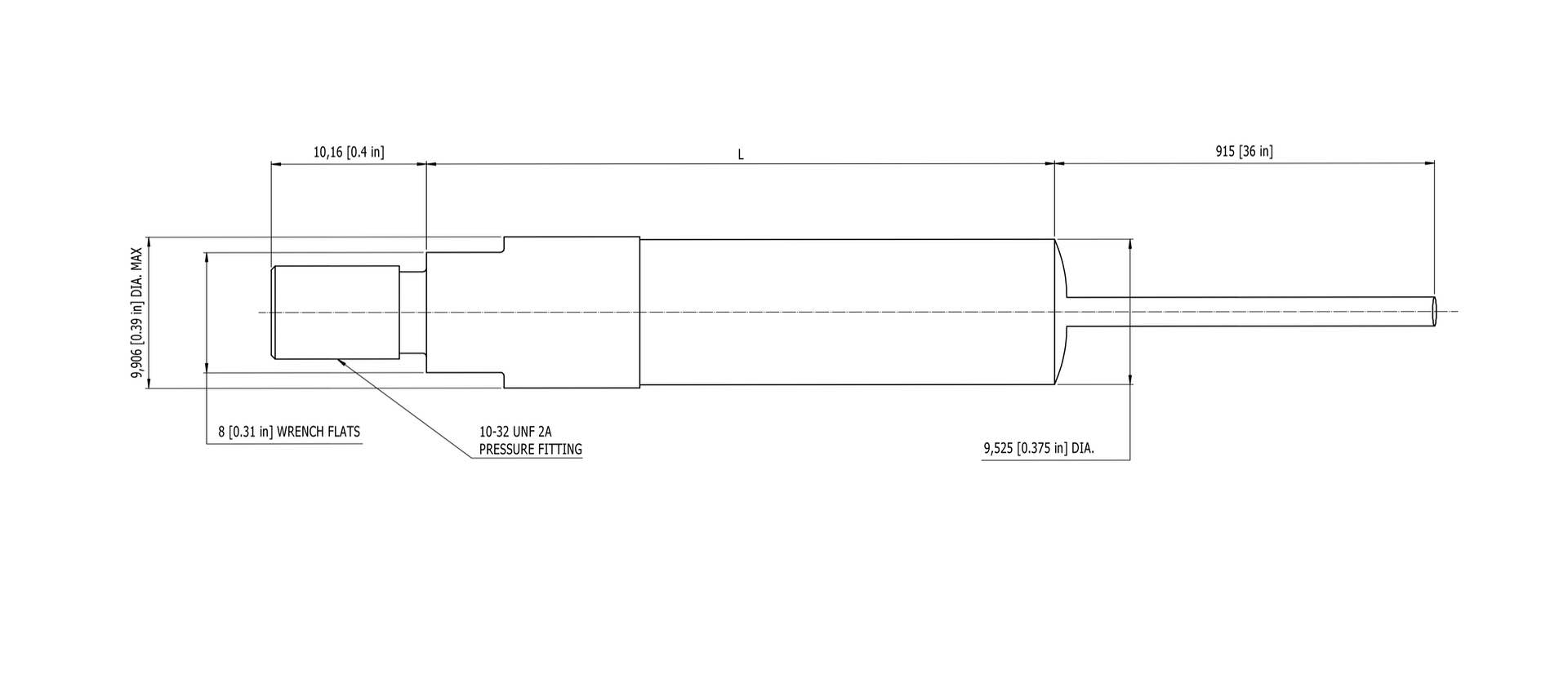

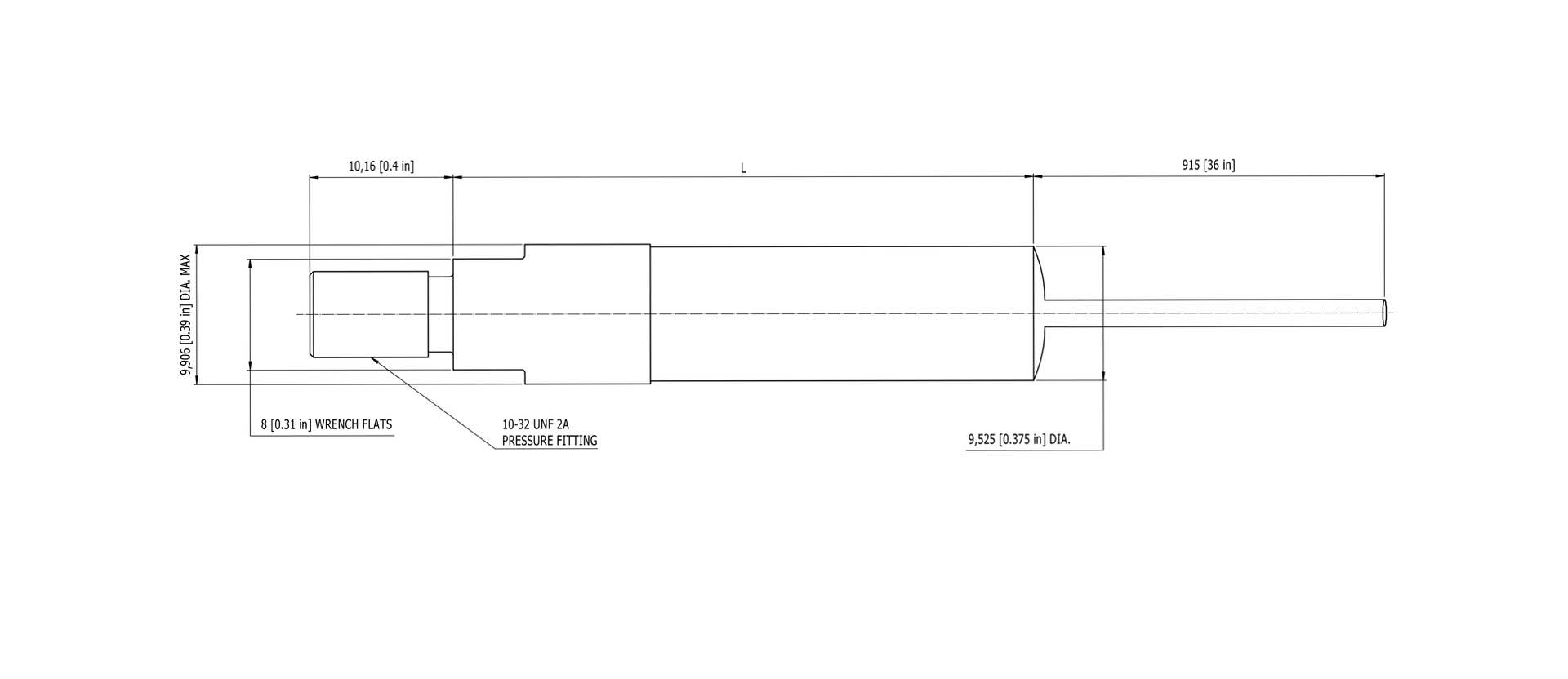

Pressure on the diaphragm is applied through a hole in a UNF 10-32 threaded nose which is then converted to an electric signal proportional to the pressure. Titanium hermetic headers permit offering the MP 5X series with absolute or sealed reference options. The hermetic header is located just behind the strain gauge diaphragm section of the sensor. Sealing the sensitive gauges to an inert environment dramatically increases stability and reliability. Long term stability versions are available.
Teflon coating of the diaphragm is optional. Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
Applications
- Test & measurement equipment
- Precision experiments
- Long term embedded pressure sensing
- Production equipment & controls
- Energy controls
- Laboratory instruments & equipment
- Liquid level
- Hydraulic controls
For line pressure fittings (standard and Swagelok) and calibration adaptors, see the Adaptor Brochure.
MP 50
MP 50
Input 0-5V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 20-350 bar
Non Standard Pressure Ranges: 2-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): ±2 mV
Full Scale Sensitivity: 20±2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 0-5 V DC or AC
Maximum Voltage (short periods): 30 V
view-download
MP 52
MP 52
Input 0-4mA, DC or AC;
MECHANICAL
Standard Pressure Ranges: 20-350 bar
Non Standard Pressure Ranges: 2-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): ±2 mV
Full Scale Sensitivity: 27±1.4 mV/mA
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Current Excited: 0–4 mA DC or AC
Maximum Voltage (short periods): 30 V
view-download
MP 502
MP 502
Input 12-32V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 20-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): 4±0.2 mV
Full Scale Sensitivity: 20±0.2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 12-32V, DC or AC
Maximum Voltage (short periods): 32 V
view-download
MP 56 and MP 562 miniature, low cost
Micron’s Models MP56 and MP562 are miniature, low cost, general use transducers with threaded interface. These transducers are made of corrosive resistant Titanium (6AL4V). They utilize high reliability semiconductor strain gages bonded directly to the inside surface of the machined diaphragm.
Pressure on the diaphragm is applied through the hole in the nose, which is then converted to an electric signal proportional to the pressure.
These sensors are insensitive to mounting torque.
Applications
- test & measurement equipment
- long term embedded pressure sensing
- production equipment & controls
- energy controls
- laboratory instruments & equipment
- liquid level
- calibration equipment
- hydraulic controls
The MP 56/ MP562 sensors are:
- Compact size, fitted with a 1.8 m (6 ft) cable.
- Manufactured in Titanium, Ti6Al4V
- Insensitive to screw down torque
Input:
- MP 56: 5V DC or 10V DC (constant voltage output)
- MP 562: 12-30V DC (constant current output)
See our datasheet for more specific information; send us an e-mail if you have question.
For line pressure fittings (standard and Swagelok) and calibration adaptors, see the Adaptor Brochure.
MP 56
Input 0-5V, DC or AC; Relative
MECHANICAL
Standard Pressure Ranges: 20-200 bar
MP 56
Input 0-5V or 0-10V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 3.5-500 bar
Non Standard Pressure Ranges: 0.7-1.7 bar
PERFORMANCE
Balance (Zero): ±2 mV
Full Scale Sensitivity: 20±2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability (std): < 0.2% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 0-5 V or 0-10 V DC or AC;
Maximum Voltage (short periods): 50 V
view-download
MP 562
MP 562
Input 12 to 32 V DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 20-350 bar
Non Standard Pressure Ranges: 0.7-1.7 bar
Other ranges possible contact us
PERFORMANCE
Balance (Zero): 4±0.2 mA
Full Scale Sensitivity: 20±0.2 mA
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability (std): < 0.2% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard: -20 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Current Excited: 12 to 32 V DC or AC;
Maximum Voltage (short periods): 32 V
