flush mount
pressure and temperature – dual sensors
MTP 4X series
MPT 4X Series – Flush Mount dual sensors
Models MPT 4X are flush mountable, miniature, low cost, general use pressure transducers. These transducers are made of corrosive resistant titanium (Ti6Al4V). They utilize high reliability bulk type semi-conductor strain gauges and temperature sensors bonded directly to the inside surface of the machined diaphragm. The bond and housing make the sensors accurate and resistant to very harsh environments, including aggressive fluids, multi-phase fluids and high vibrations.
Teflon coating of the diaphragm is optional. Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
In addition to our standard line of Titanium transducers, Micron has experience in providing sensors made of 17-4 PH steel (1.4548), 316 SS steel (1.4404), Inconel, Tantalum, Aluminum, Invar Plastics and others.
Pressure range, precision level and long-term stability can be selected depending on requirements.
Titanium hermetic headers permit offering the MPT 4X series with absolute or sealed reference options.
The hermetic header is located just behind the strain and temperature gauge diaphragm section of the sensor. Sealing the sensitive gauges to an inert environment dramatically increases stability and reliability. Long-term stability versions and/or extreme accuracy options are available.
High vibration options are also available.
For line pressure fittings (standard and Swagelok) and calibration adaptors, see the Adaptor Brochure.
Applications
- Test & measurement equipment
- Precision experiments
- Long term embedded pressure sensing
- Production equipment & controls
- Energy controls
- Laboratory instruments & equipment
- Calibration equipment

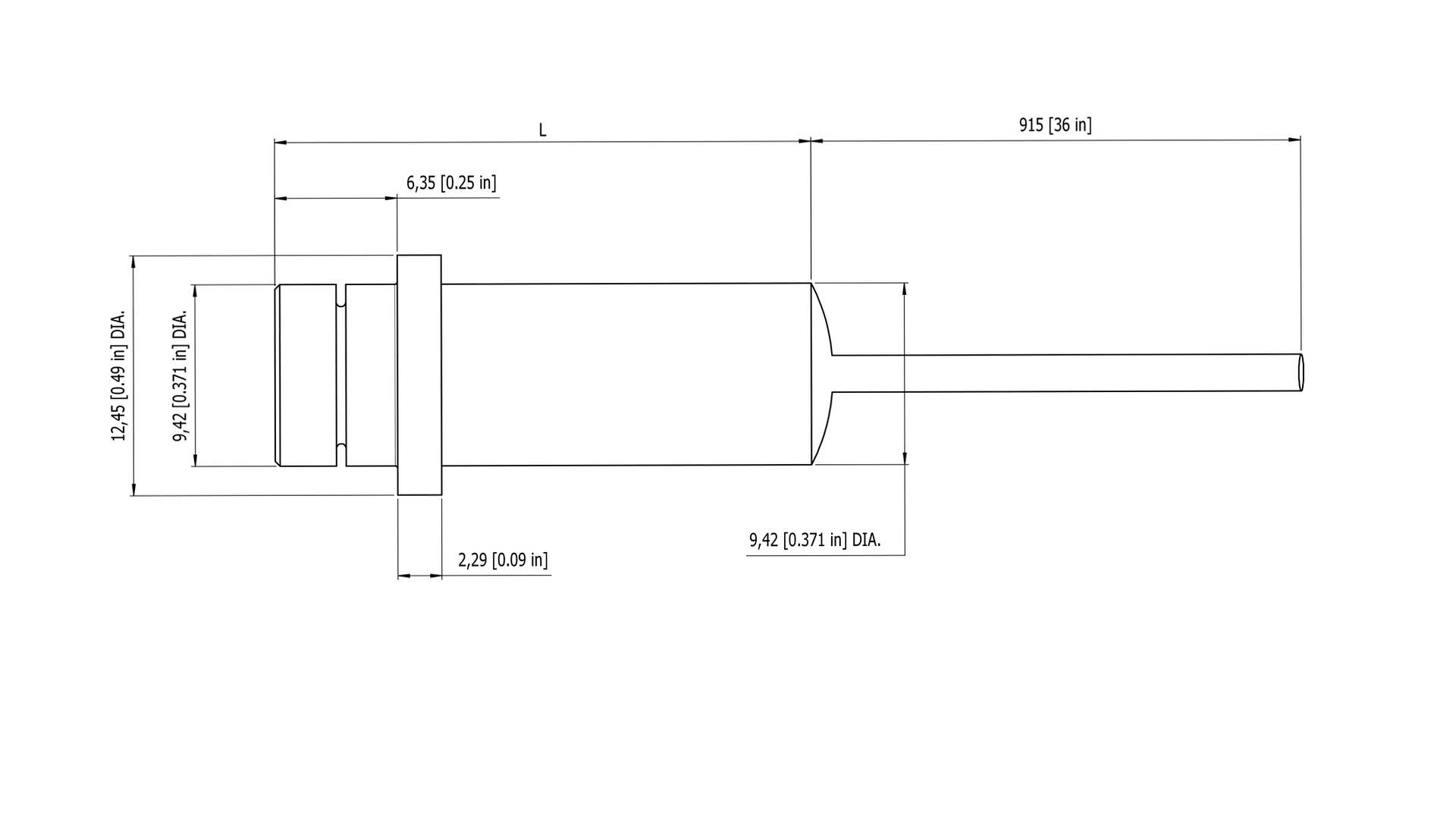

MPT 40
MPT 40
Input 0-5V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 2-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE (PRESSURE)
Balance (Zero): ±2 mV
Full Scale Sensitivity: 20±2 mV/V
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
PERFORMANCE (TEMPERATURE)
Balance @ 0 °C: ±2 mV
Sensitivity (5.0 V DC excitation): 8.6±0.9 mV/°C
Static Error Band: ± 0.27 °C
Input Resistance: 12000±1000Ω
Output Resistance: 11000±1000Ω
ENVIRONMENTAL
Storage and Operating Temperature, standard: -45 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 0–5 Volts DC or AC
Maximum Voltage (short periods): 30 V
view-download

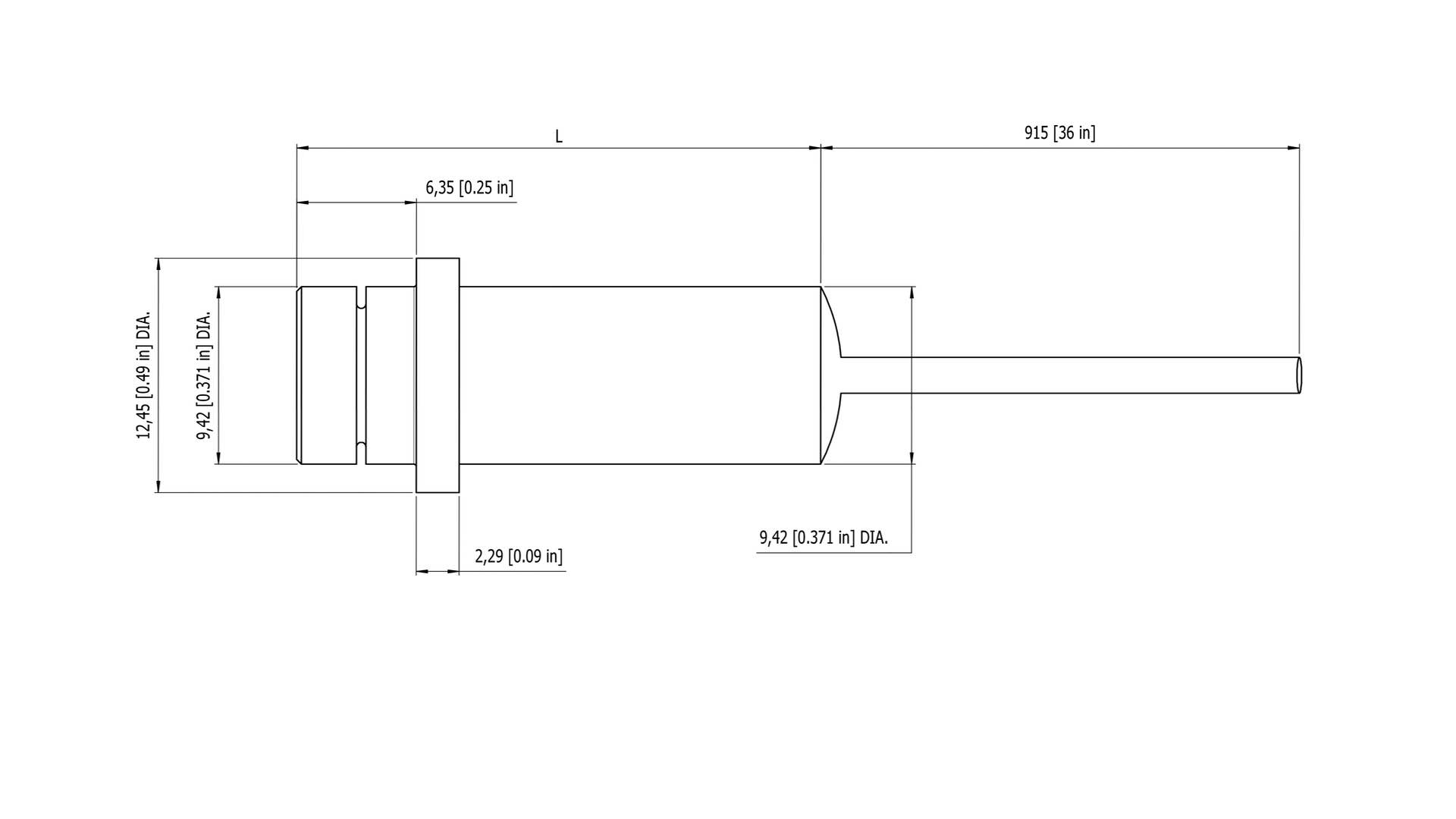

MPT 402
MPT 402
Input 12-32V, DC or AC; Relative, Absolute or Sealed Reference
MECHANICAL
Standard Pressure Ranges: 2-500 bar
Non Standard Pressure Ranges: 1-700 bar
Other ranges possible contact us
PERFORMANCE (PRESSURE and TEMPERATURE options)
Balance (Zero): 4±0.2 mA
Full Scale Sensitivity: 16±0.2 mA
Static Error Band: ± 0.25% F.S. (BFSL), max.
Long Term Stability: < 0.1% F.S. per year. (options)
ENVIRONMENTAL
Storage and Operating Temperature, standard:-45 °C to +80 °C
Extended Temperature Range: -54°C to +95 °C
High Temperature Version: -54°C to +250 °C
Acceleration: 100g any axis (high vibrations option)
Media Compatibility: Titanium 6AL4V
PTFE coated option
Other coating options (water, hydrocarbon, bio-fluid repellent, etc.)
ELECTRICAL
Input, constant Voltage Excited: 12-32V, DC or AC
Maximum Voltage (short periods): 32 V
